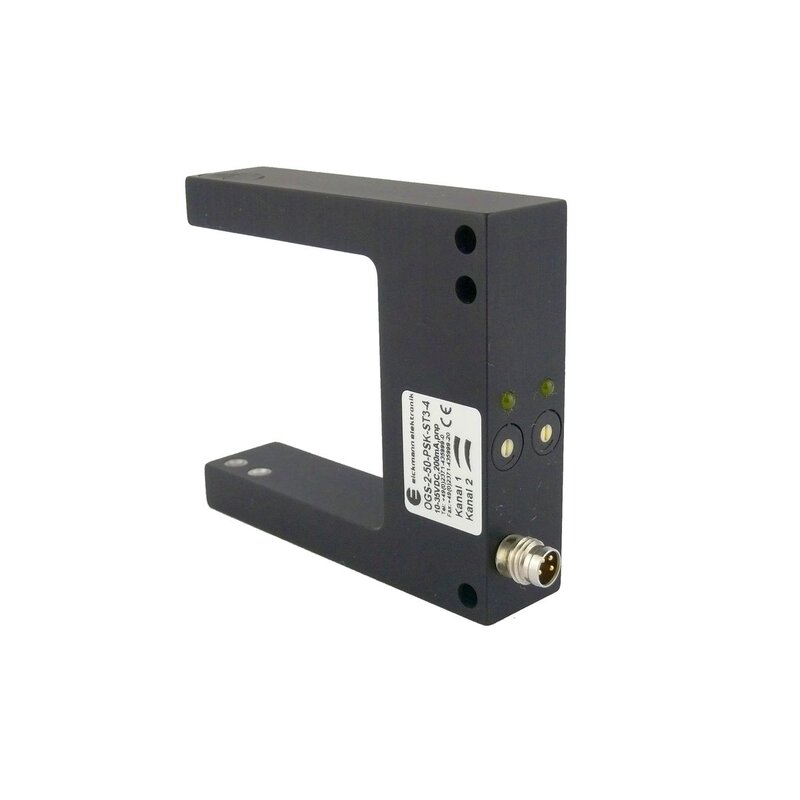

fork light barrier OGS-2-50-PSK-ST3-4

Category	Special sensors
Group	Fork light barriers
Article number	900.0050.202
Name	OGS-2-50-PSK-ST3-4
Connection	Connector M8
Resolution	0,4 mm
Evaluation	static
Sensitivity	adjustable
Ambient light immunity	50 klx
Operating principle	optical
Branch length inside	55 mm
Fork opening	50 mm
casing material	Aluminum black anodized
Insulation voltage endurance	500 V
Output	DUAL PNP NO
switching frequency	2,5 kHz
Switching hysteresis	< 0,2 mm
Emitted light	Red light
Temperature drift	< 10 %
Dimensions	80 x 70 x 20 mm
Number of poles	4
Weight	0,08 kg
max. load current	200 mA / short circuit proof
Reproducibility	< 0,01 mm
Voltage drop	< 2,5 V
Ambient temperature	- 10°C ... + 60°C
service voltage	10 - 35 VDC
Noload current	< 35 mA
protection class	IP 67
Degree of protection	III safety extra-low voltage
Country of origin	DE
CTN	85365019
Remark	OFS2-050-P2S-T4
