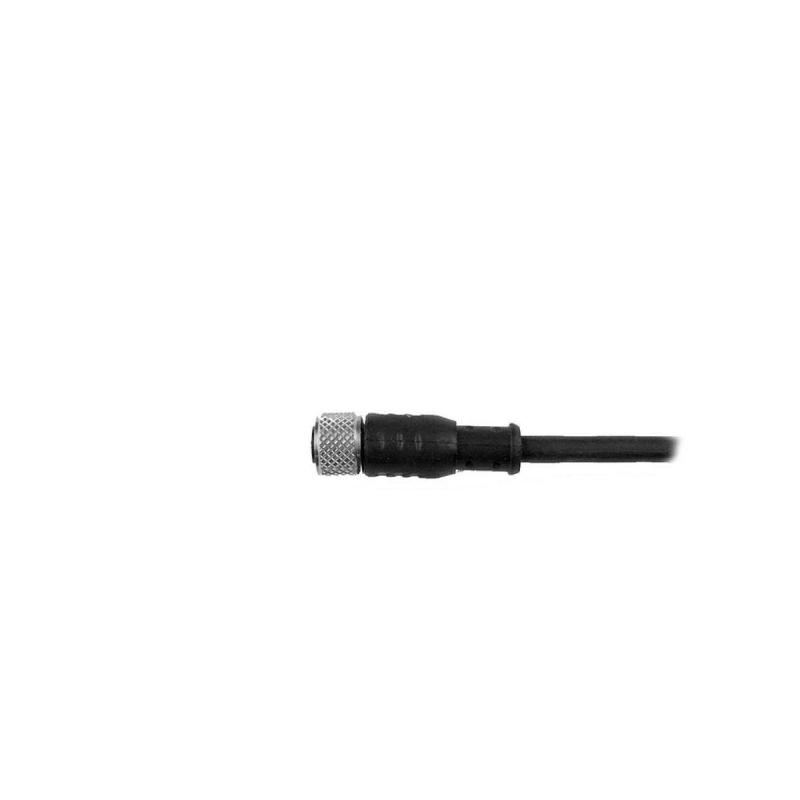

Connecting cable M8-5,0-Z/4
| Category | Connection technology |
| Group | Connecting cable |
| Article number | 725.8405.202 |
| Name | M8-5,0-Z/4 |
| Wire crosssection | 4 x 0,25 mm² |
| Connection A | Coupling M8 straight |
| Connection B | open cable end |
| Outer diameter | 4,50 mm |
| Rated voltage cable | 30V |
| Bending radius repeated | 10 x Ø-Leitung |
| Bending radius fixed | 5 x Ø-Leitung |
| Cable length | 5,0 m |
| Cablejacket material | PUR |
| Temperature range repeated | -25°C...+80°C |
| Temperature range drag chain | -25°C…+60°C |
| Number of poles | 4 |
| Weight | 0,150 kg |
| max load current | 3A |
| Ambient temperature | -25°C...+80°C |
| protection class | IP 67 screwed |
| Degree of protection | III safety extra-low voltage |
| Description | The M8 sensor cable with an open end reliably connects the sensor to the controller. |
