This product is out of date.
Please take a look at the successor.
OEV_OSV-32-PUK-ST3-4
×
![modal content]()

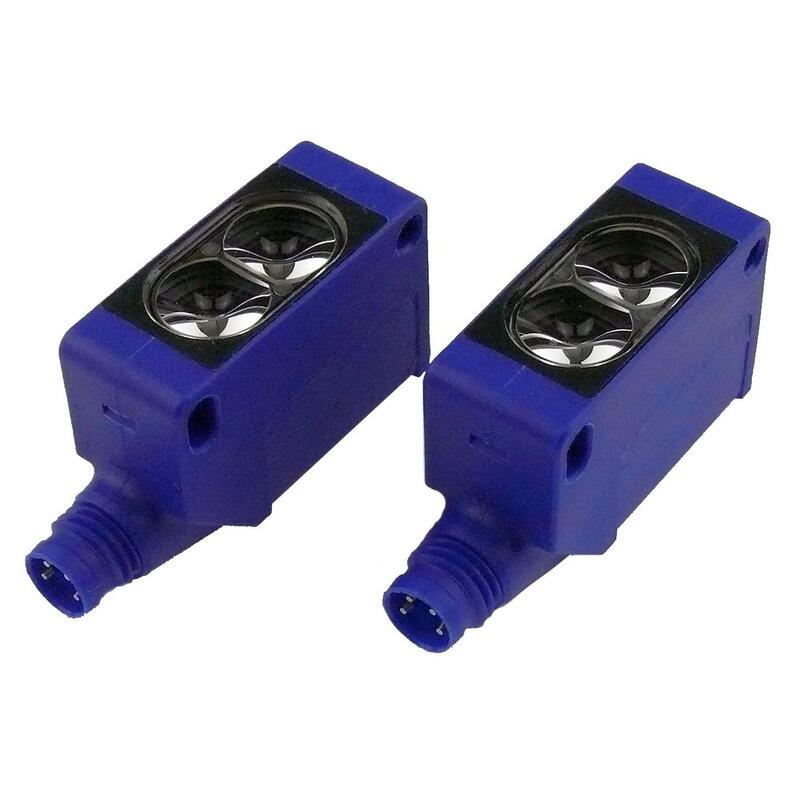

Light barrier OEV/OSV-31-PUK-ST3-4
| Category | Light barriers |
| Group | Trough-beam sensor |
| Article number | 315.0031.250 |
| Name | OEV/OSV-31-PUK-ST3-4 |
| Connection | Connector M8 |
| Evaluation | static |
| Design | Cuboid design |
| Sensitivity | adjustable |
| Ambient light immunity | 3 klx |
| casing material | PA66 |
| Sensing distance | 20 m |
| Output | PNP NO/NC |
| switching frequency | 2 kHz |
| Switching hysteresis | < 15% |
| Emitted light | Red light |
| Dimensions | 40,6 x 21 x 13mm |
| Number of poles | 4 |
| Weight | 0,020 kg |
| max. load current | 100 mA / short circuit proof |
| Reproducibility | < 5% |
| Voltage drop | < 2,5V |
| Ambient temperature | - 20°C ... + 60°C |
| service voltage | 10 - 30 VDC |
| Noload current | < 30 mA |
| polarity protection | yes |
| protection class | IP 67 |
| Degree of protection | III safety extra-low voltage |
| Country of origin | DE |
| CTN | 85365019 |
