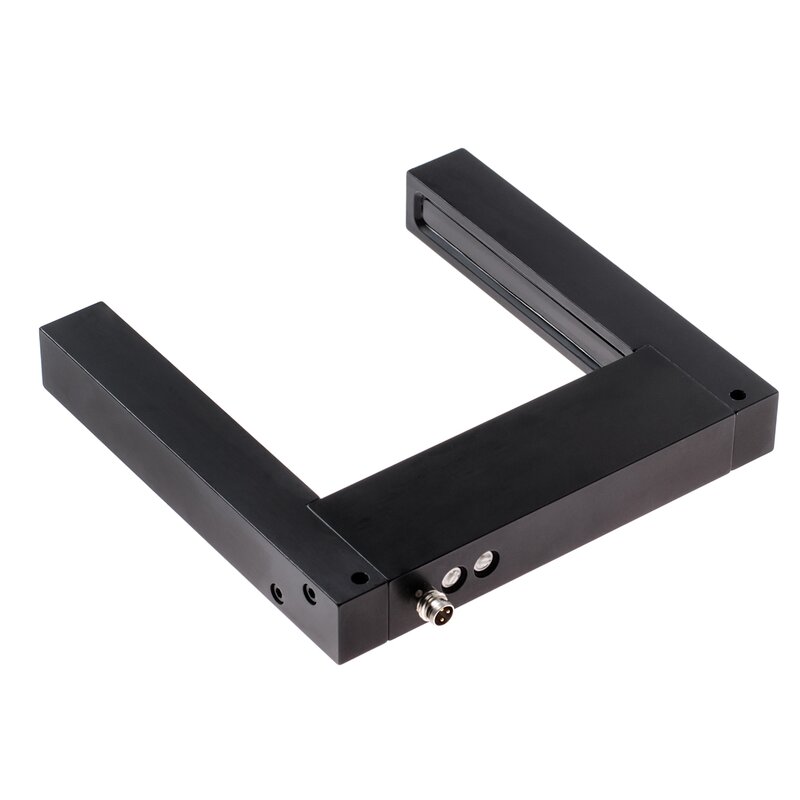

Rahmenlichtschranke ORSH-40-GAVSK-ST3-4

Category	Frame light barriers
Group	Analog
Article number	925.1074.200
Name	ORSH-40-GAVSK-ST3-4
Connection	Connector M8
Evaluation	analog
Resolution	1 mm
Ambient light immunity	50 klx
Operating principle	optical
casing material	Aluminum black anodized
Insulation voltage endurance	500 V
Output	Analog 0-10 VDC + Gegentakt NO
switching frequency	1 kHz
Switching hysteresis	< 0,2 mm
Emitted light	Infrared clocked
Active area	50 x 35 mm
Temperature drift	< 10 %
Dimensions	81 x 90 x 20 mm
Number of poles	4
Weight	0,20 kg
max. load current	200 mA / short circuit proof
Reproducibility	< 0,01 mm
Voltage drop	< 2,5 V
Ambient temperature	- 10°C ... + 60°C
service voltage	10 - 30 VDC
Noload current	< 70 mA
protection class	IP 67
Degree of protection	III safety extra-low voltage
Country of origin	DE
CTN	85365019
Description	Frame light-barrier with analog and digital output.
