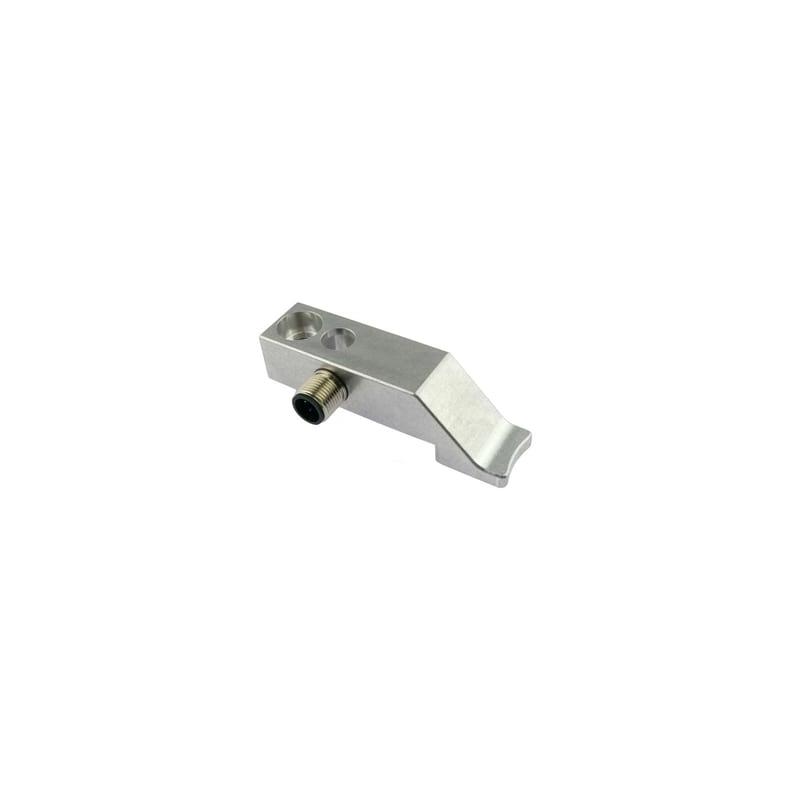

Rotationsensor RS-20-GUK-ST4

Category	Special sensors
Group	Rotationssensoren
Article number	360.2024.002
Name	RS-20-GUK-ST4
Connection	Connector M12
Evaluation	static
Coding of	A
Ambient light immunity	50 klx
Operating principle	Hall-effect
casing material	Aluminum
Sensing distance	5 mm
Output	Push pull NO/NC
switching frequency	2,5 kHz
Switching hysteresis	< 0,2 mm
Temperature drift	< 10 %
Dimensions	82 x 20 x 24mm
Number of poles	4
Weight	0,25 kg
max. load current	200 mA / short circuit proof
Reproducibility	< 0,01 mm
Voltage drop	< 2,5 V
Ambient temperature	- 10°C ... + 60°C
service voltage	10 - 35 VDC
Noload current	< 35 mA
protection class	IP 67
Degree of protection	III safety extra-low voltage
Country of origin	DE
Remark	KE SEN-WZ ROT 04
Description	Der Rotationssensor erkennt die Drehzahl von Kappenfräsern.
