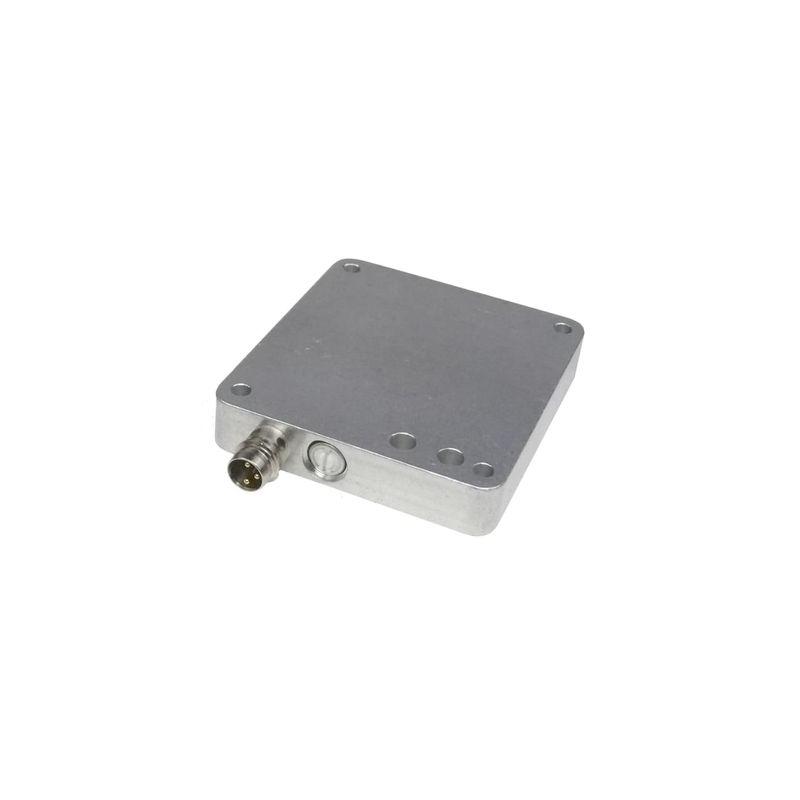

Contact sensor PS-50-PSK-ST3

Category	Special sensors
Group	Contact sensors
Article number	310.0050.001
Name	PS-50-PSK-ST3
Connection	Connector M8
Evaluation	static
Resolution	steelball 3mm from 20mm height
Sensitivity	adjustable
Operating principle	contact based
casing material	Aluminum
Impulse stretching	adjustable to 80 ms
Insulation voltage endurance	500 V
Output	PNP NO
switching frequency	100 Hz
Active area	55 x 50 mm
Dimensions	65 x 50 x 10 mm
Number of poles	3
Weight	0,055 kg
max. load current	200 mA / short circuit proof
Ambient temperature	- 25°C ... + 75°C
service voltage	10 - 35 VDC
Noload current	< 15 mA
protection class	IP 67
Degree of protection	III safety extra-low voltage
Country of origin	DE
CTN	85365019
