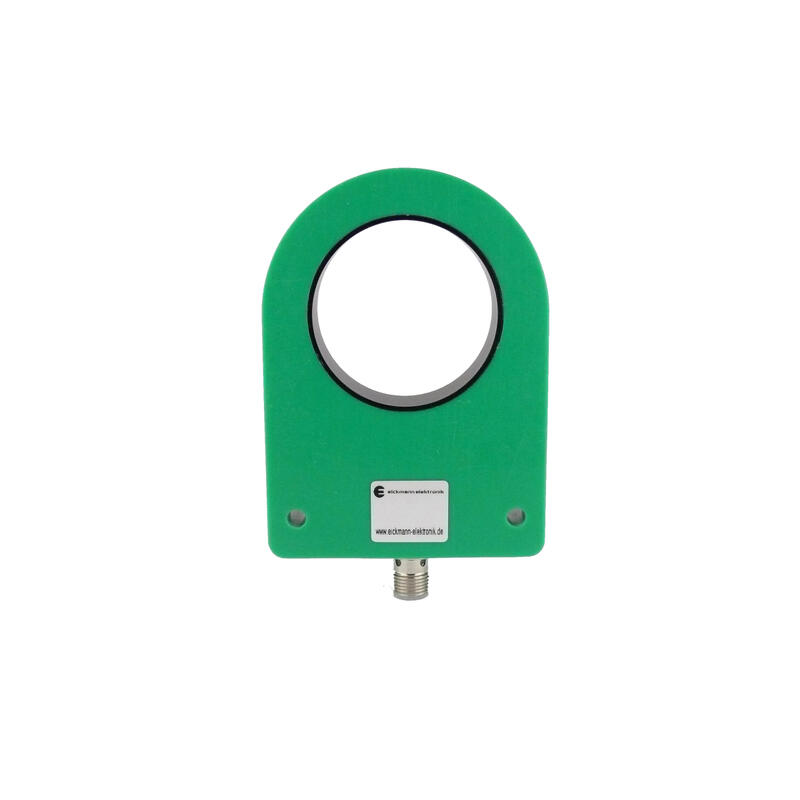

Ringsensor IRS-35-PUKT-ST4

Category	Ringsensors
Group	Inductive
Article number	540.0035.000
Name	IRS-35-PUKT-ST4
Connection	Connector M12
Response-release time	< 2 ms
Resolution	> 3,5 mm
Evaluation	static
Coding of	A
Sensitivity	adjustable
Operating principle	induktiv
casing material	POM
Impulse stretching	10 – 200 ms
Ring diamter	35,1 mm
Ringmaterial	PA 66
Output	PNP NO/NC
Object speed	< 35 m/s
Dimensions	85 x 60 x 20 mm
Number of poles	4
max. load current	200 mA / short circuit proof
Ambient temperature	- 10°C ... + 60°C
service voltage	10 – 30 VDC
Noload current	< 10 mA
polarity protection	yes
protection class	IP 67
Degree of protection	III safety extra-low voltage
Country of origin	DE
CTN	85365019
