This product is out of date.
Please take a look at the successor.
IRS-100-PAKT-ST4
×
![modal content]()
×

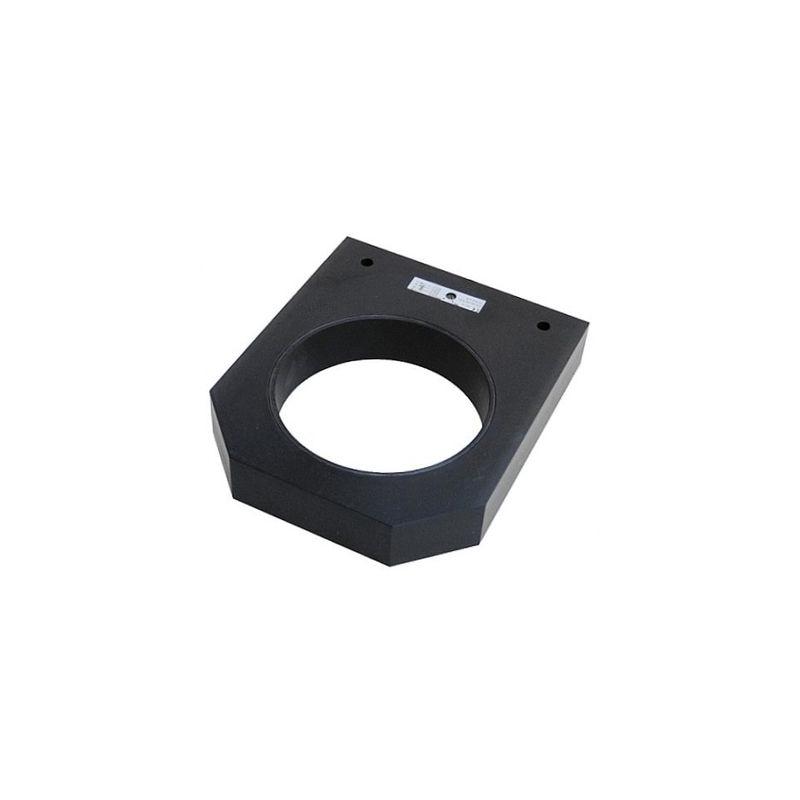

Ringsensor IR-100-PAK-ST4
| Category | Ringsensors |
| Group | Inductive |
| Article number | 540.0100.000 |
| Name | IR-100-PAK-ST4 |
| Connection | Connector M12 |
| Response-release time | < 2 ms |
| Resolution | > 12 mm |
| Evaluation | static |
| Coding of | A |
| Sensitivity | adjustable |
| Operating principle | induktiv |
| casing material | Plastik |
| Impulse stretching | 100 ms |
| Ring diamter | 100,1 mm |
| Output | PNP NO+NC |
| Object speed | < 25 m/s |
| Dimensions | 105 x 85 x 20 mm |
| Number of poles | 4 |
| Weight | 0,71 kg |
| max. load current | 200 mA / short circuit proof |
| Ambient temperature | - 10°C ... + 60°C |
| service voltage | 10 – 30 VDC |
| Noload current | < 10 mA |
| polarity protection | yes |
| protection class | IP 65 |
| Degree of protection | III safety extra-low voltage |
| Country of origin | DE |
| CTN | 85365019 |
