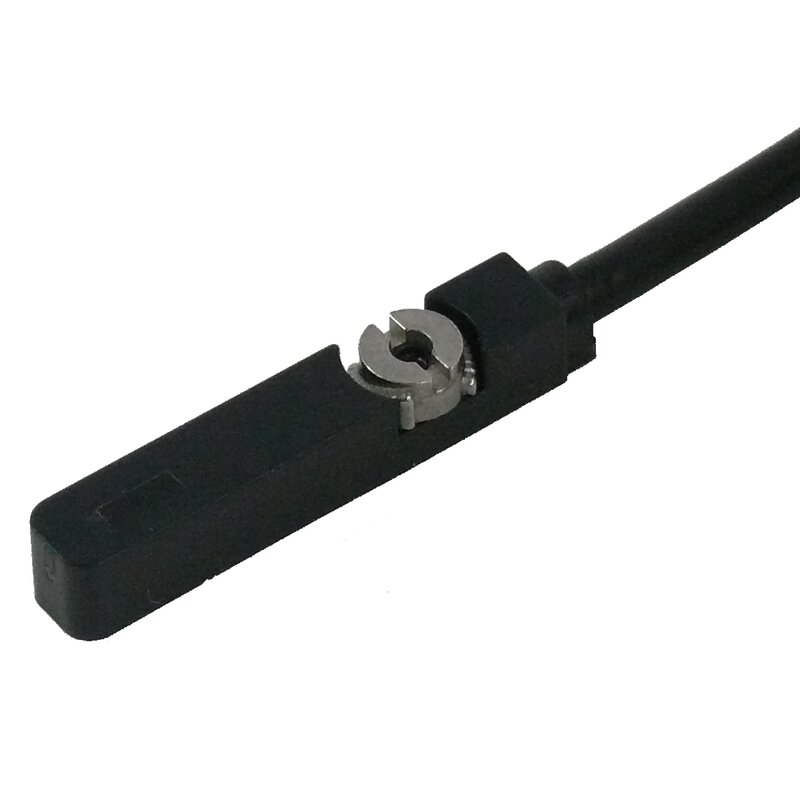

Proximity Switch ZYT-07-PSE-KST3

Category	Proximity Switch
Group	Cylinder Switches
Article number	350.1008.202
Name	ZYT-07-PSE-KST3
Connection	Cableconnector M8
Evaluation	static
Design	T-Slot
Dimension	5 x 5 mm
Eigenschaft	T-Nut
Operating principle	magnetisch
casing material	PA 12
Length	30 mm
Output	PNP NO
switching frequency	3 kHz
Switching hysteresis	< 15%
Temperature drift	< 10 %
Number of poles	3
Weight	0,010 kg
max. load current	200 mA
Reproducibility	< 1 %
Voltage drop	< 2.5 V
Ambient temperature	- 20°C ... + 85°C
service voltage	10 – 30 VDC
Noload current	< 7,5 mA
protection class	IP 67
Degree of protection	III safety extra-low voltage
Country of origin	DE
CTN	85365019
Remark	installation in T-slot from above
