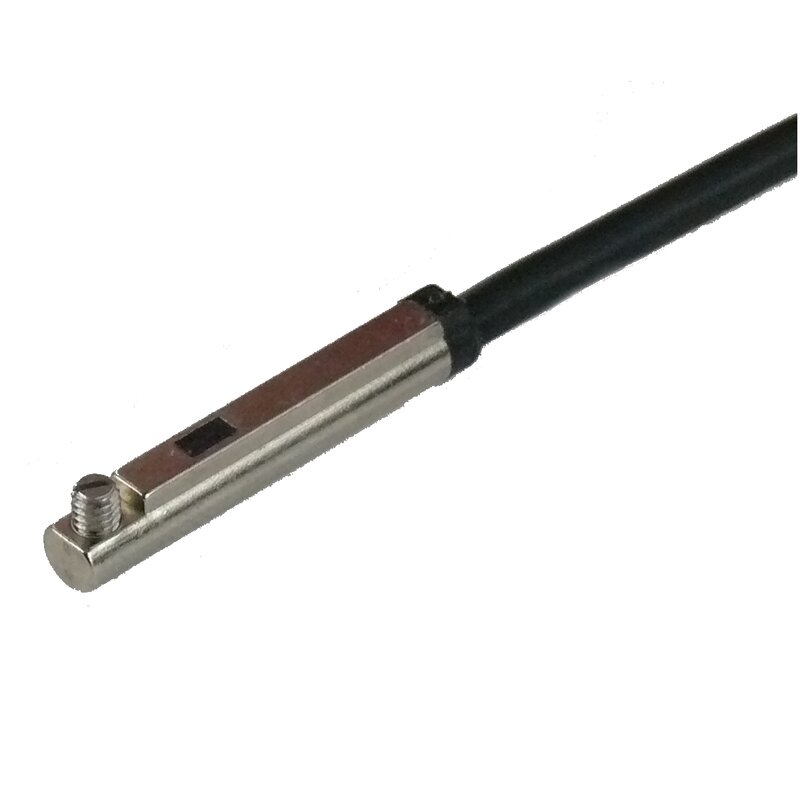

Cylinder Switches ZYCM-04-PSE-2m

Category	Proximity Switch
Group	Cylinder Switches
Article number	350.2014.225
Name	ZYCM-04-PSE-2m
Connection	PVC-Cable 2m
Evaluation	static
Design	C-Slot
Dimension	3,9 mm
Eigenschaft	C-Nut, SMC
Operating principle	magnetisch
casing material	zinc die-casting
Length	26,3 mm
Output	PNP NO
switching frequency	1 kHz
Switching hysteresis	< 15%
Temperature drift	< 10 %
Number of poles	3
Weight	0,025 kg
max. load current	200 mA
Reproducibility	< 1 %
Voltage drop	< 1,5 V
Ambient temperature	- 10°C ... + 60°C
service voltage	5 – 30 VDC
Noload current	< 14 mA
protection class	IP 67
Degree of protection	III safety extra-low voltage
Country of origin	DE
CTN	85365019
