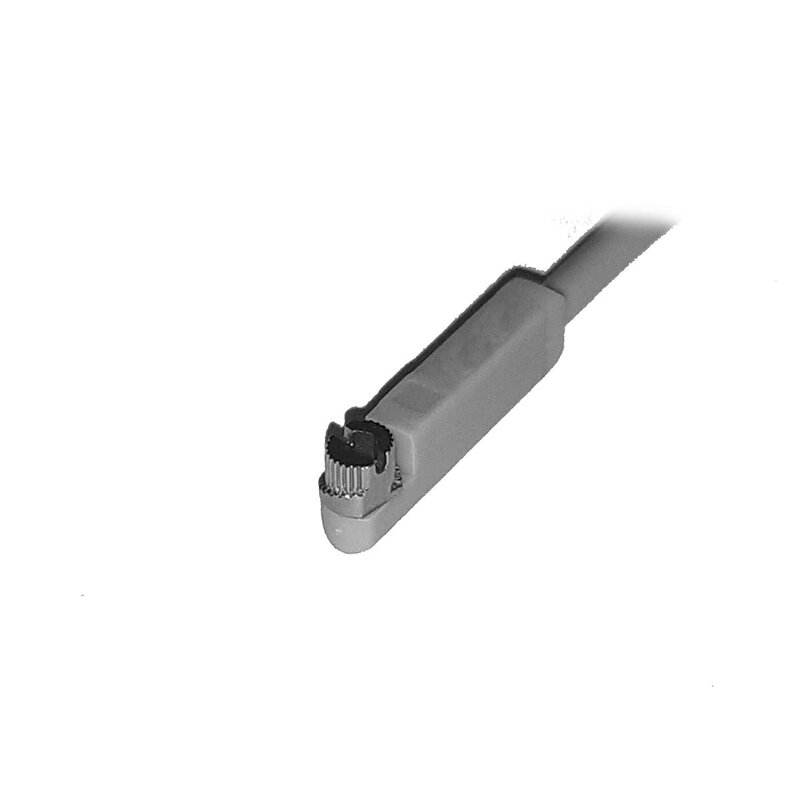

Cylinder Switches ZYCG-03-PSE-2m

Category	Proximity Switch
Group	Cylinder Switches
Article number	360.0030.000
Name	ZYCG-03-PSE-2m
Connection	PVC-Cable 2m
Evaluation	static
Design	C-Slot
Dimension	2,85 mm
Eigenschaft	C-Nut, Festo,Sommer
Sensitivity	40-800 Gauss
Operating principle	magnetisch
casing material	PA 12
Length	16,8 mm
Output	PNP NO
switching frequency	900 Hz
Switching hysteresis	< 15%
Temperature drift	< 10 %
Number of poles	3
Weight	0,01 kg
max. load current	100 mA
Reproducibility	< 1 %
Voltage drop	< 0.8 V
Ambient temperature	- 20°C ... + 80°C
service voltage	5 – 30 VDC
Noload current	< 3 mA
Insulation voltage endurance	yes
protection class	IP 68
Degree of protection	III safety extra-low voltage
Country of origin	DE
CTN	85365019
