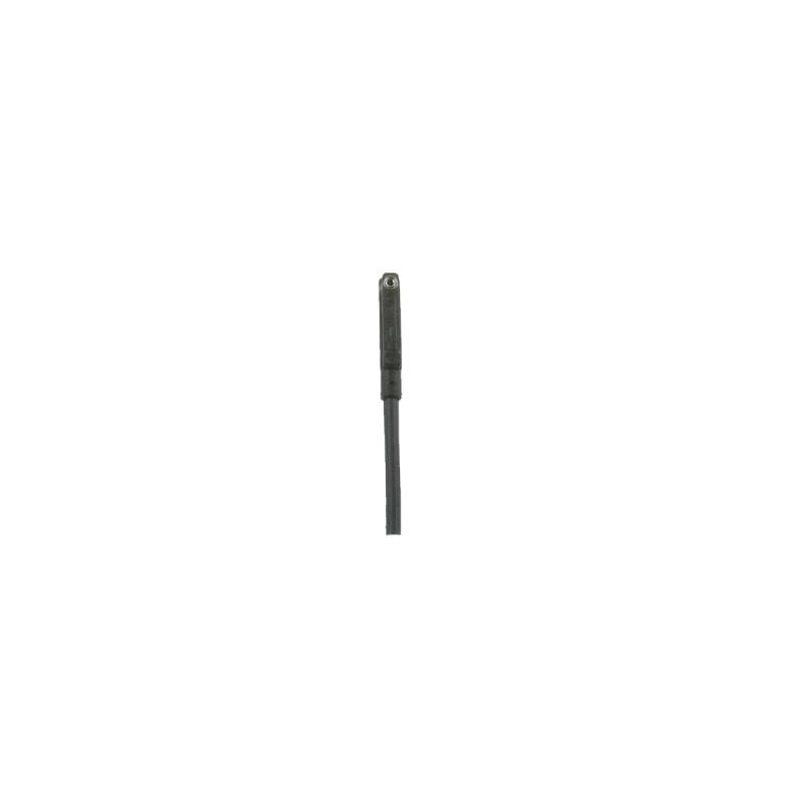

Cylinder Switches ZYC-04-PSR-M8

Category	Proximity Switch
Group	Cylinder Switches
Article number	350.0015.229
Name	ZYC-04-PSR-M8
Connection	Cableconnector M8
Evaluation	static
Design	C-Slot
Dimension	4 mm
Eigenschaft	C-Nut, SMC
Operating principle	magnetisch
Length	25 mm
Output	REED NO
switching frequency	1 kHz
Switching hysteresis	< 15%
Temperature drift	< 10 %
Number of poles	2
max. load current	100 mA
Reproducibility	< 1 %
Voltage drop	< 1,5 V
Ambient temperature	- 10°C ... + 60°C
service voltage	5 – 240 V AC/DC
Noload current	< 8 mA
protection class	IP 67
Degree of protection	III safety extra-low voltage
Country of origin	DE
CTN	85365019
