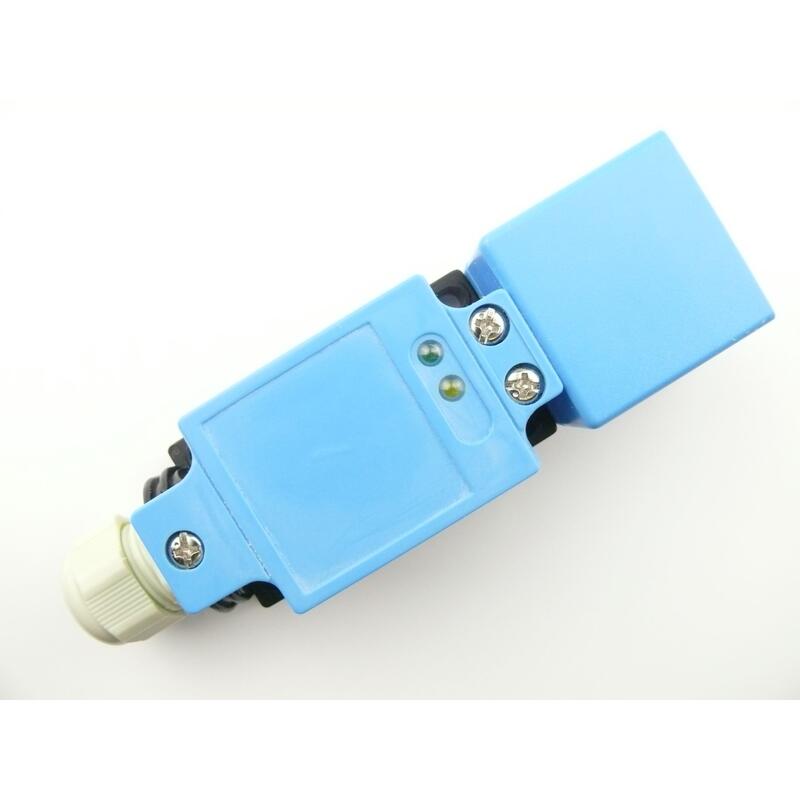

Proximity Switch KDCQ-40-NAK-KLR

Category	Proximity Switch
Group	Capacitive
Article number	120.3000.815
Name	KDCQ-40-NAK-KLR
Connection	Klemmraum
Evaluation	static
Design	Cuboid design
Dimension	40x40 mm
Eigenschaft	rechteckig
Einbauart	flush
Operating principle	Capacitive
casing material	PBT
Insulation voltage endurance	500 V
Length	118 mm
Sensing distance	15 mm
Output	NPN NO+NC
switching frequency	100 Hz
Switching hysteresis	< 15%
Temperature drift	< 10 %
max. load current	200 mA / short circuit proof
Reproducibility	< 1 %
Voltage drop	< 1,5 V
Ambient temperature	- 10°C ... + 75°C
service voltage	10 – 30 VDC
Noload current	< 8 mA
protection class	IP 67
Degree of protection	III safety extra-low voltage
Country of origin	DE
CTN	85365019
