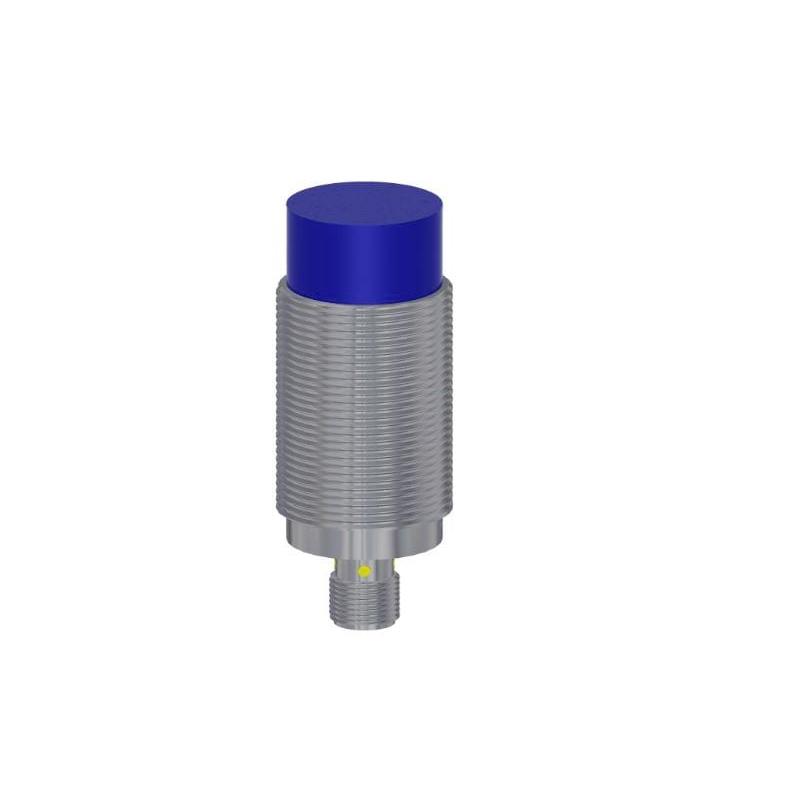

Proximity Switch KDCL-030-NOK-ST4

Category	Proximity Switch
Group	Capacitive
Article number	120.3000.739
Name	KDCL-030-NOK-ST4
Connection	Connector M12
Evaluation	static
Design	Thread design M30
Coding of	A
Dimension	M30
Eigenschaft	cylindrical
Einbauart	non flush
Operating principle	Capacitive
casing material	Brass
Insulation voltage endurance	500 V
Length	79 mm
Sensing distance	25 mm
Output	NPN NC
switching frequency	100 Hz
Switching hysteresis	< 15%
Temperature drift	< 10 %
Number of poles	3
Weight	0,17 kg
max. load current	200 mA / short circuit proof
Reproducibility	< 1 %
Voltage drop	< 1,5 V
Ambient temperature	- 10°C ... + 60°C
service voltage	10 – 30 VDC
Noload current	< 8 mA
protection class	IP 67
Degree of protection	III safety extra-low voltage
Country of origin	DE
CTN	85365019
