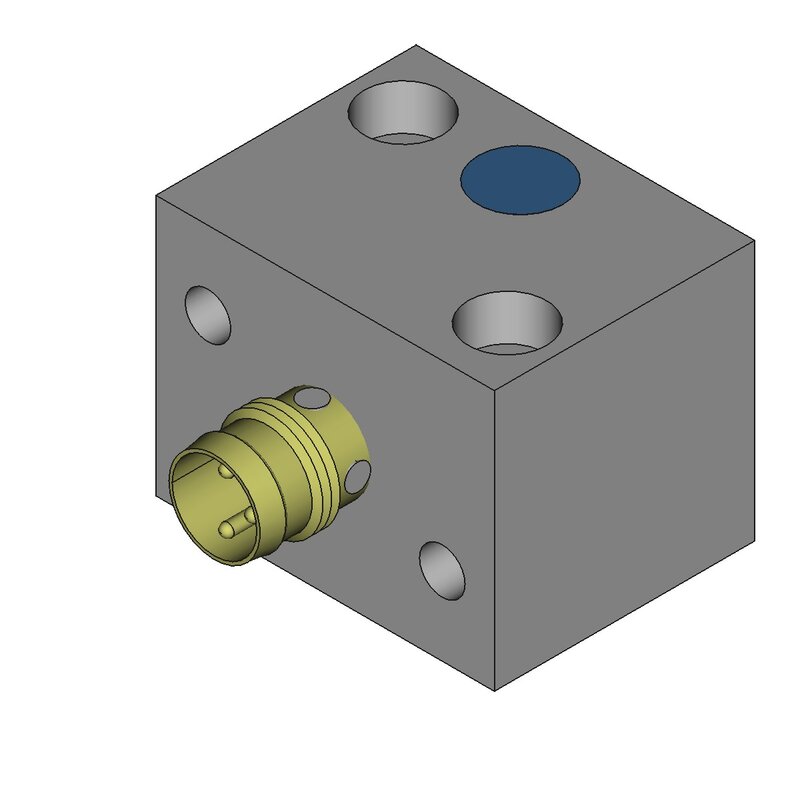

Proximity Switch DCQ-2020L-PSK-ST3

Category	Proximity Switch
Group	Standard
Article number	120.2020.001
Name	DCQ-2020L-PSK-ST3
Connection	Connector M8
Evaluation	static
Design	Cuboid design
Dimension	20 x 20 x 26 mm
Eigenschaft	rechteckig
Einbauart	flush
Operating principle	Inductive
casing material	Aluminum
Insulation voltage endurance	500 V
Sensing distance	1,5 mm
Output	PNP NO
switching frequency	800 Hz
Switching hysteresis	< 15%
Temperature drift	< 10 %
Number of poles	3
max. load current	200 mA / short circuit proof
Reproducibility	< 1 %
Voltage drop	< 1,5 V
Ambient temperature	- 20°C ... + 70°C
service voltage	10 – 30 VDC
Noload current	< 8 mA
protection class	IP 67
Degree of protection	III safety extra-low voltage
Country of origin	DE
CTN	85365019
Remark	IG-R20x20L-A1,5-26-PS-SS8
