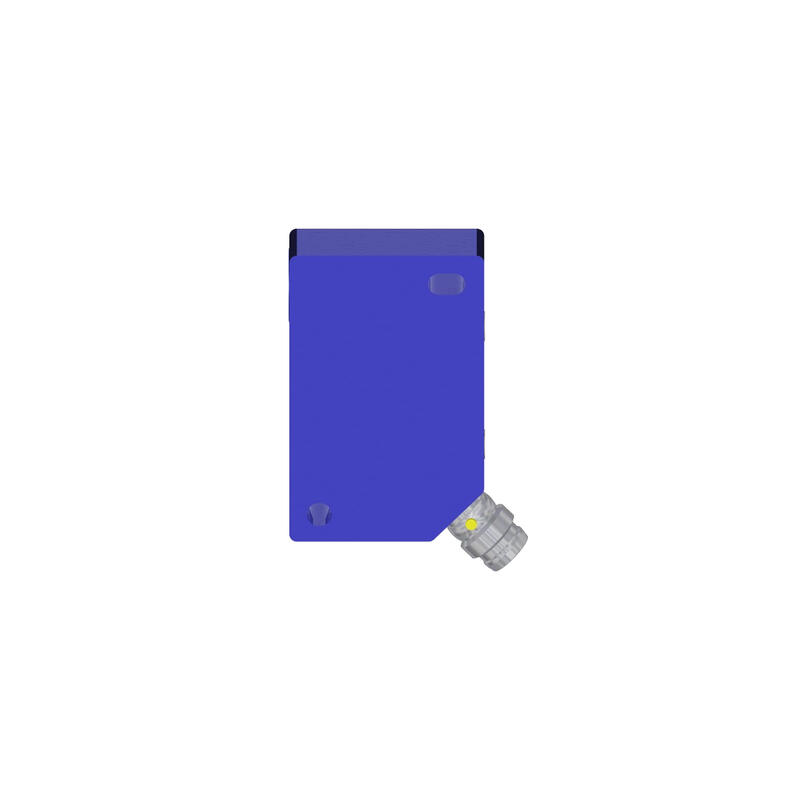

Proximity Switch DCQ-030-NSK-ST3

Category	Proximity Switch
Group	Standard
Article number	120.1226.003
Name	DCQ-030-NSK-ST3
Connection	Connector M8
Evaluation	static
Design	Cuboid design
Dimension	12x26 mm
Eigenschaft	rechteckig
Einbauart	non flush
Operating principle	Inductive
casing material	Kunststoff
Insulation voltage endurance	500 V
Length	40 mm
Sensing distance	4 mm
Output	NPN NO
switching frequency	400 Hz
Switching hysteresis	< 15%
Temperature drift	< 10 %
Number of poles	3
max. load current	200 mA / short circuit proof
Reproducibility	< 1 %
Voltage drop	< 1,5 V
Ambient temperature	- 10°C ... + 60°C
service voltage	10 – 30 VDC
Noload current	< 8 mA
protection class	IP 67
Degree of protection	III safety extra-low voltage
Country of origin	DE
CTN	85365019
