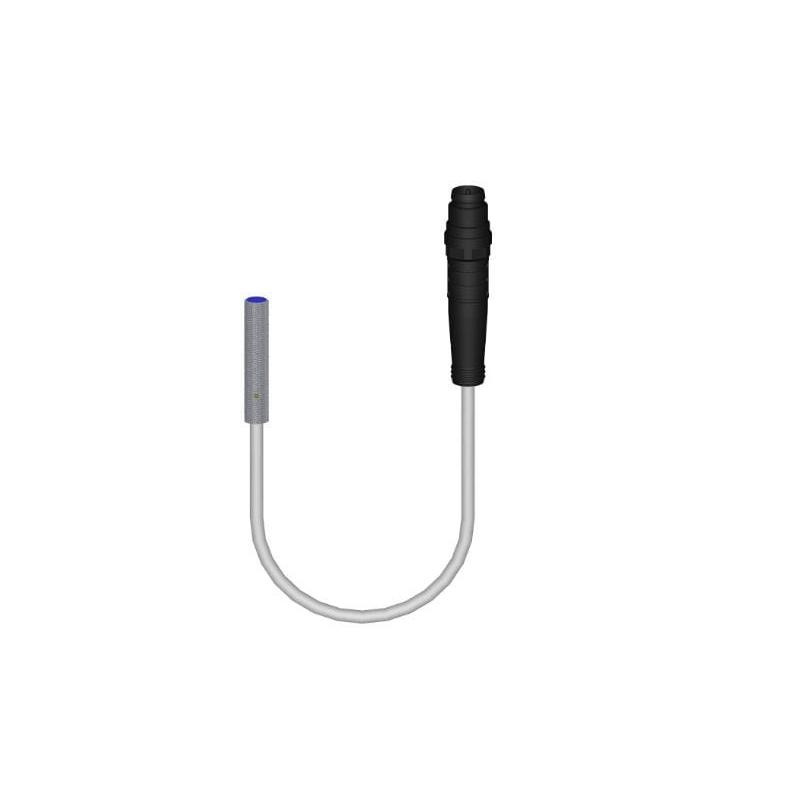

Proximity Switch DCG-5-NOK-KST3

Category	Proximity Switch
Group	Miniatur
Article number	110.0508.557
Name	DCG-5-NOK-KST3
Connection	Cableconnector M8
Evaluation	static
Design	Thread design M5
Dimension	M5 x 0,5
Eigenschaft	cylindrical
Einbauart	flush
Operating principle	Inductive
casing material	Stainless steel
Insulation voltage endurance	500 V
Length	26 mm
Sensing distance	0,8 mm
Output	NPN NC
switching frequency	2 kHz
Switching hysteresis	< 15%
Temperature drift	< 10 %
Number of poles	3
Weight	0,03 kg
max. load current	200 mA / short circuit proof
Reproducibility	< 1 %
Voltage drop	< 1,5 V
Ambient temperature	- 10°C ... + 60°C
service voltage	10 – 30 VDC
Noload current	< 8 mA
protection class	IP 67
Degree of protection	III safety extra-low voltage
Country of origin	DE
CTN	85365019
