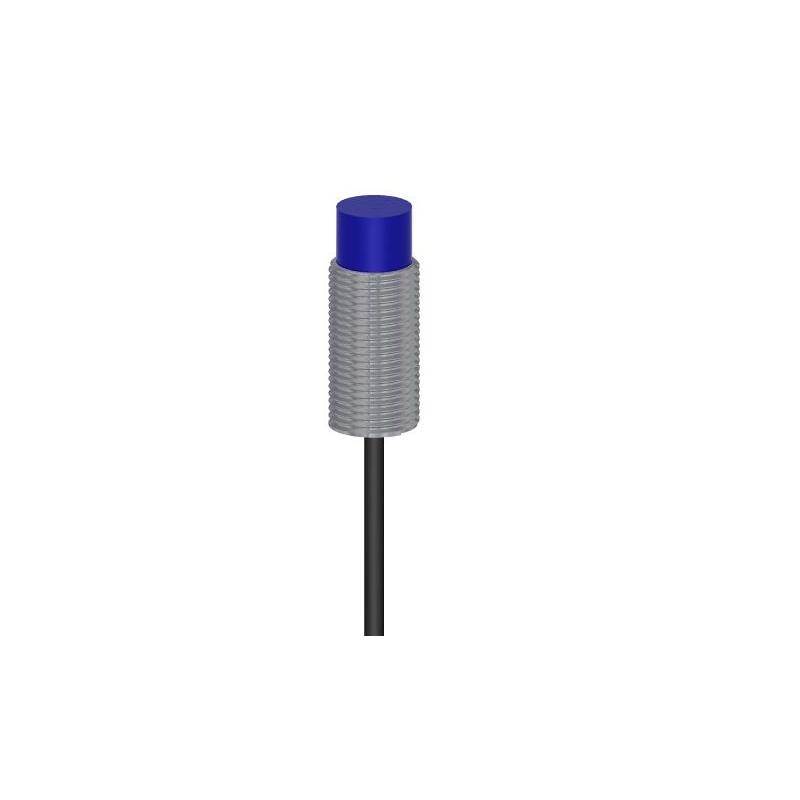

Proximity Switch DCDSVM-012-PSK-2m

Category	Proximity Switch
Group	Metal face
Article number	120.3000.218
Name	DCDSVM-012-PSK-2m
Connection	PVC-Cable 2m
Evaluation	static
Design	Thread design M12
Dimension	M12 x 1
Eigenschaft	Metal face
Einbauart	non flush
Operating principle	Inductive
casing material	Stainless steel
Insulation voltage endurance	500 V
Length	30 mm
Sensing distance	6 mm
Output	PNP NO
switching frequency	400 Hz
Switching hysteresis	< 15%
Temperature drift	< 10 %
Number of poles	3
max. load current	200 mA / short circuit proof
Reproducibility	< 1 %
Voltage drop	< 1,5 V
Ambient temperature	- 10°C ... + 60°C
service voltage	10 – 30 VDC
Noload current	< 8 mA
protection class	IP 69k
Degree of protection	III safety extra-low voltage
Country of origin	DE
CTN	85365019
Remark	All-metal housings provide protection against corrosion, moisture and aggressive chemicals.
