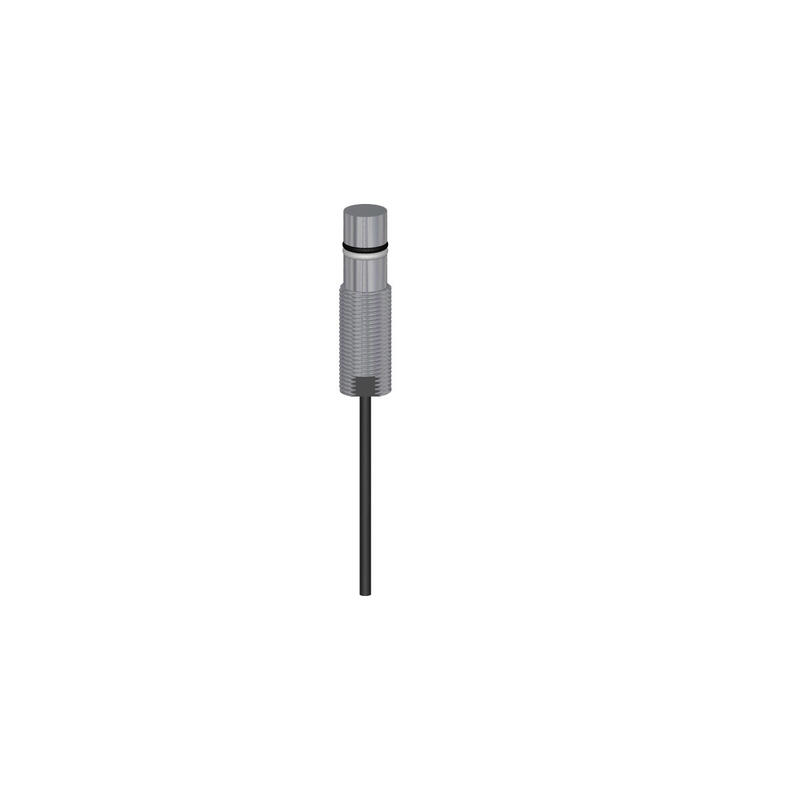

Proximity Switch DCDFM-12-NSK-2m

Category	Proximity Switch
Group	Pressure proof
Article number	120.3000.011
Name	DCDFM-12-NSK-2m
Connection	PVC-Cable 2m
Evaluation	static
Design	Thread design M12
Dimension	M12 x 1
Eigenschaft	druckfest 500 bar
Einbauart	flush
Operating principle	Inductive
casing material	Stainless steel
Insulation voltage endurance	500 V
Length	43 mm
Sensing distance	1,5 mm
Output	NPN NO
switching frequency	1 kHz
Switching hysteresis	< 15%
Temperature drift	< 10 %
Number of poles	3
max. load current	200 mA / short circuit proof
Reproducibility	< 1 %
Voltage drop	< 1,5 V
Ambient temperature	- 20°C ... + 70°C
service voltage	10 – 30 VDC
Noload current	< 8 mA
protection class	IP 69k
Degree of protection	III safety extra-low voltage
Country of origin	DE
CTN	85365019
