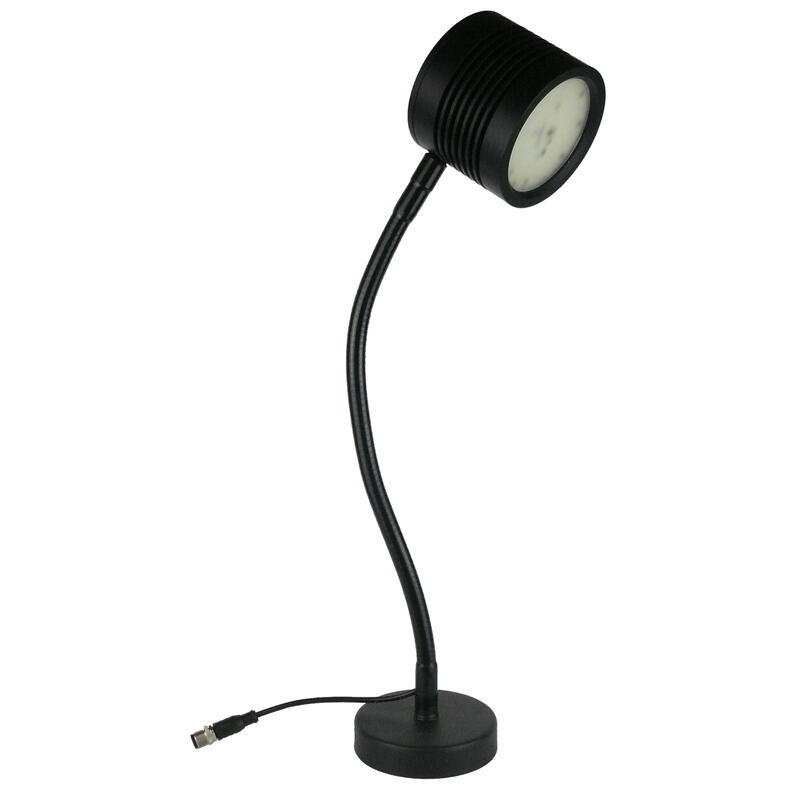

Machine lighting MBR-100-MAG-KST4
| Category | Machinelighting |
| Group | Machine lighting |
| Article number | 300.0100.100 |
| Name | MBR-100-MAG-KST4 |
| Connection | Cableconnector M12 |
| Design | round |
| Illumination value at 0,5m | 2500 Lux |
| Illumination value at 1,0m | 720 Lux |
| Coding of | A |
| color temperature | 5000 K |
| color rendering index | 85 |
| LED-color | white |
| Input power at 24VDC | 12 W |
| Lighting area | Ø 80 mm |
| Lighting current | 1600 lm |
| Material of case | Aluminum black anodized |
| Material of pane | Perspex |
| PWM input | 24 VDC up to 15kHz |
| Shock / vibration | 30g / 10–55Hz, 1mm |
| Segments | 1 |
| Dimensions | 520 x 100 x 100 m |
| Number of poles | 3 |
| Weight | 1,85 kg |
| service voltage | 24 VDC (±10%) |
| operating temperature | -25°C … +50°C |
| Noload current | 500 mA |
| polarity protection | yes |
| protection class | IP67 |
| Degree of protection | III safety extra-low voltage |
| Country of origin | DE |
| CTN | 94054990 |
| Description | Machine lighting with PWM Input for dimming and switching. |
