This product is out of date.
×
![modal content]()

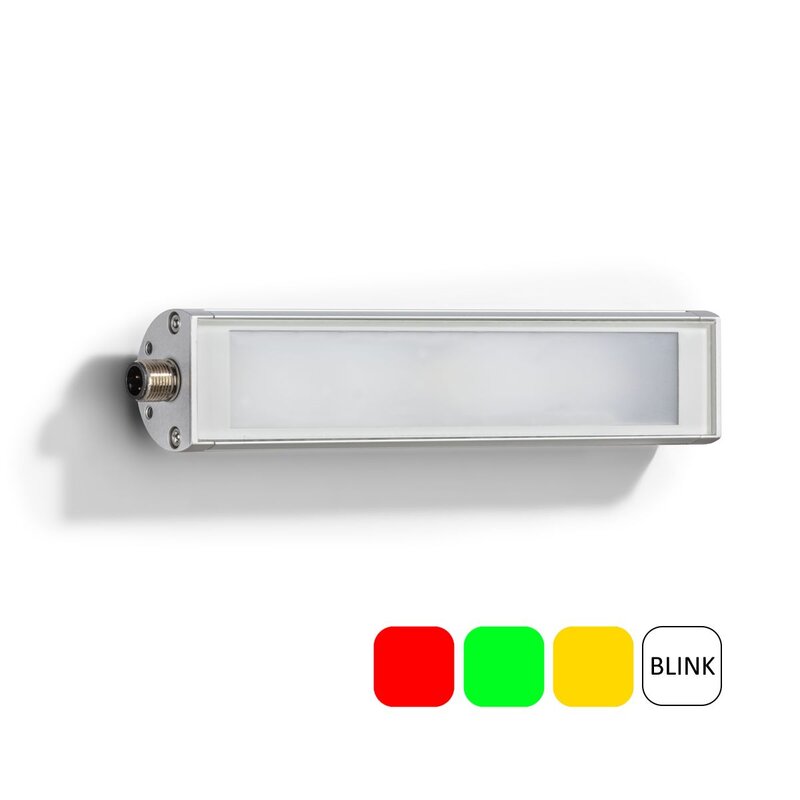

Signal light MBC-40-F-RGG-ST4-5
| Category | Machinelighting |
| Group | Signal lighting |
| Article number | 340.1040.300 |
| Name | MBC-40-F-RGG-ST4-5 |
| Connection | Connector M12 |
| Design | Cylinder |
| Coding of | A |
| color temperature | 620-520-580 K |
| color rendering index | 85 |
| LED-color | red,green,yellow |
| Input power at 24VDC | 12 W / 8 W / 15 W |
| Lighting area | 1008 x 29 mm |
| Lighting current | 760-1088-1848 lm |
| Material of case | Aluminum silver anodized |
| Material of pane | 4mm safety glas |
| Shock / vibration | 30g / 10–55Hz, 1mm |
| Segments | 1 |
| Dimensions | 1036 x 40 x 29mm |
| Number of poles | 5 |
| service voltage | 24 VDC (±10%) |
| operating temperature | -30°C … +60°C |
| Noload current | 500 mA / 333 mA / 625 mA |
| polarity protection | yes |
| protection class | IP67/IP69K |
| Degree of protection | III safety extra-low voltage |
| Country of origin | DE |
| CTN | 94054990 |
| Description | LED machine light for use in the areas of automation, CNC and robotics. |
