MB-700-RGB-KST4
×
![modal content]()

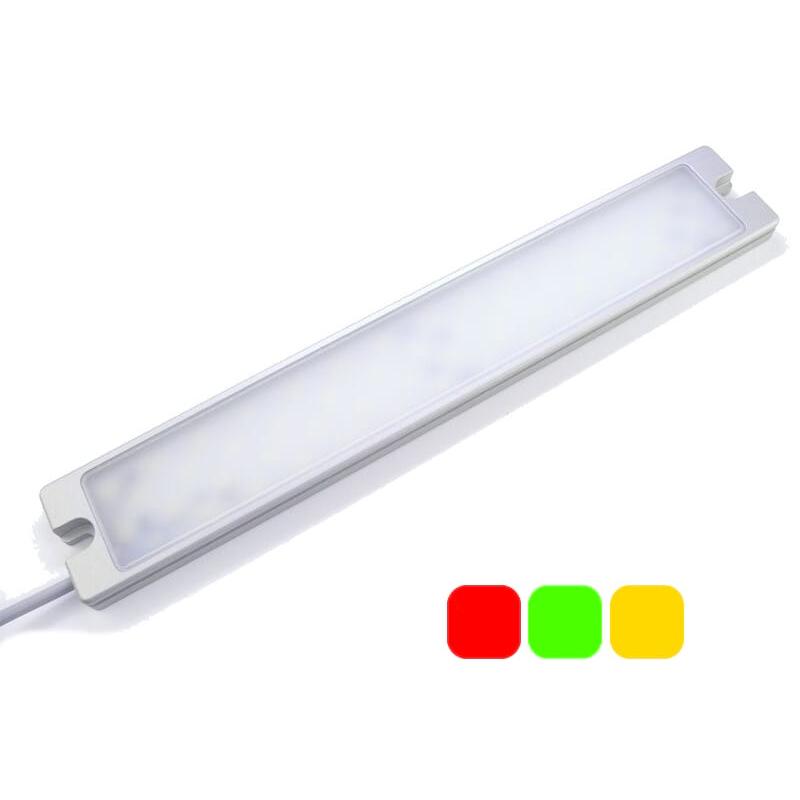

Machine lighting MB-700-RGG-KST4
| Category | Machinelighting |
| Group | Signal lighting |
| Article number | 300.7000.025 |
| Name | MB-700-RGG-KST4 |
| Connection | Cableconnector M12 |
| Design | flat |
| Coding of | A |
| LED-color | red,green,yellow |
| Input power at 24VDC | 32,4 W |
| Lighting area | 672 x 32 mm |
| Material of case | Aluminum silver anodized |
| Material of pane | Perspex |
| Shock / vibration | 30g / 10–55Hz, 1mm |
| Segments | 1 |
| Dimensions | 700 x 40 x 10 mm |
| Number of poles | 4 |
| Weight | 0,45 kg |
| service voltage | 24 VDC (±10%) |
| operating temperature | -25°C … +50°C |
| Noload current | rot 510mA grün 300mA gelb 720mA |
| polarity protection | yes |
| protection class | IP67 |
| Degree of protection | III safety extra-low voltage |
| Country of origin | DE |
| CTN | 94054990 |
| Description | Signal light with 3 colors without flashing |
