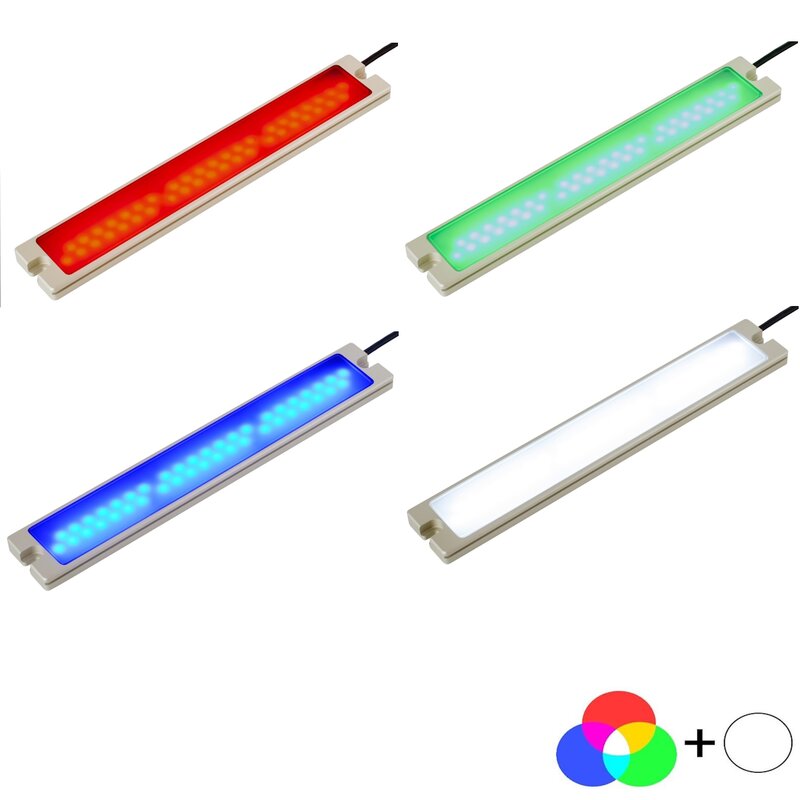

Signal light MB-480-RGBW-KST4-5

Category	Machinelighting
Group	Signal lighting
Article number	310.4800.015
Name	MB-480-RGBW-KST4-5
Connection	Cableconnector M12
Design	flat
Coding of	A
color temperature	620-520-460-5700 K
color rendering index	85
LED-color	red,green,blue or white
Input power at 24VDC	8 W / 6 W / 6 W / 8 W
Lighting area	452 x 32 mm
Lichtstrom rot	314 lm
Lichtstrom grün	1570 lm
Lichtstrom blau	1098 lm
Lichtstrom weiss	1884 lm
Material of case	Aluminum silver anodized
Material of pane	Perspex
Shock / vibration	30g / 10–55Hz, 1mm
Segments	1
Dimensions	480 x 40 x 10 mm
Number of poles	5
Weight	0,32 kg
service voltage	24 VDC (±10%)
operating temperature	-30°C … +60°C
Noload current	340 mA / 240 mA / 260 mA / 360 mA
polarity protection	yes
protection class	IP67
Degree of protection	III safety extra-low voltage
Country of origin	DE
CTN	94054990
Remark	White may not be used with RGB colors at the same time.
Description	Signal light multicolored and pure white
