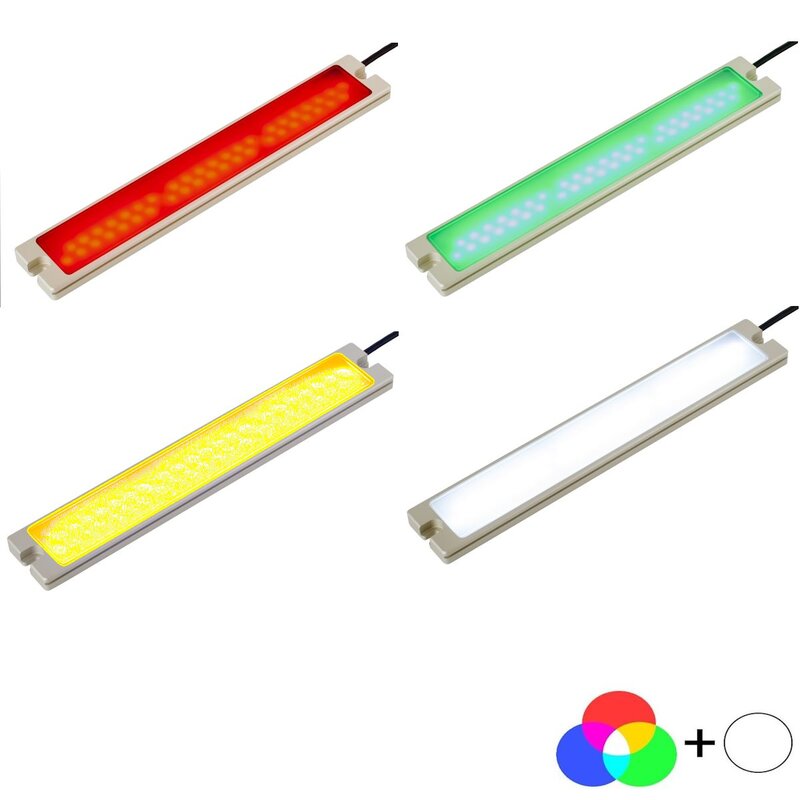

Signal light MB-250-RYGW-KST4-5

Category	Machinelighting
Group	Signal lighting
Article number	300.2500.075
Name	MB-250-RYGW-KST4-5
Connection	Cableconnector M12
Design	flat
Coding of	A
color temperature	620-520-460-5700 K
color rendering index	85
LED-color	rot,grün,gelb oder weiß
Input power at 24VDC	4 W / 3 W / 3 W / 4 W
Lighting area	222 x 32 mm
Material of case	Aluminum silver anodized
Material of pane	Perspex
Shock / vibration	30g / 10–55Hz, 1mm
Segments	1
Dimensions	250 x 40 x 10 mm
Number of poles	5
Weight	0,150 kg
service voltage	24 VDC (±10%)
operating temperature	-30°C … +60°C
Noload current	170 mA / 120 mA / 130 mA / 180 mA
polarity protection	yes
protection class	IP67
Degree of protection	III safety extra-low voltage
Country of origin	DE
CTN	94054990
Remark	White may not be used with RGB colors at the same time.
Description	Signal light multicolored and pure white
