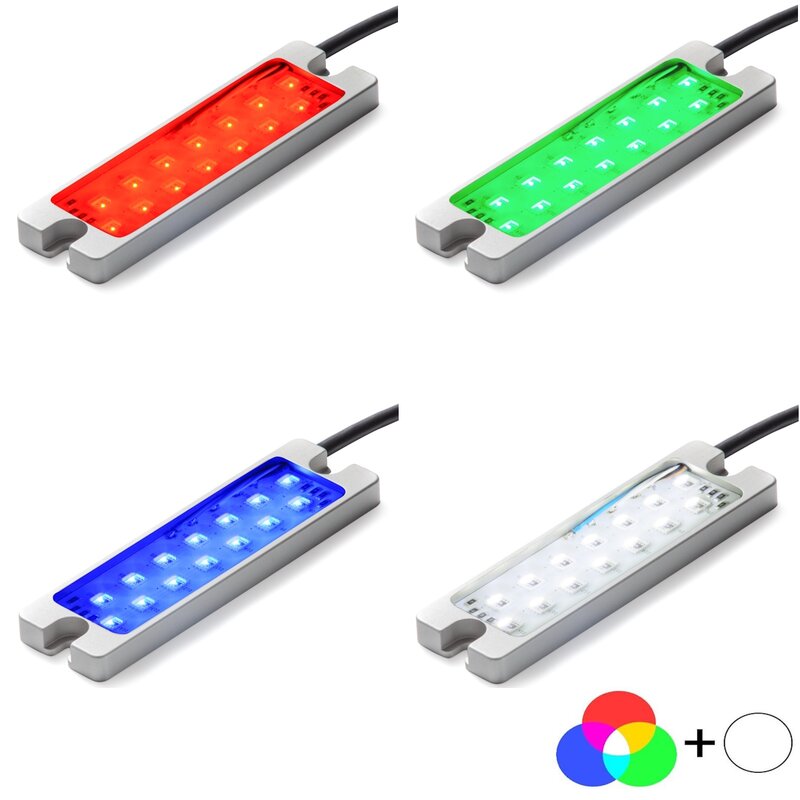

Signal light MB-100-RGBW-KST4-5

Category	Machinelighting
Group	Signal lighting
Article number	300.1000.014
Name	MB-100-RGBW-KST4-5
Connection	Cableconnector M12
Design	flat
Coding of	A
color temperature	620-520-460-5700 K
color rendering index	85
LED-color	red,green,blue or white
Input power at 24VDC	1,2 W / 1,2 W / 1,2 W / 1,7 W
Lighting area	80 x 25 mm
Material of case	Aluminum silver anodized
Material of pane	without
Shock / vibration	30g / 10–55Hz, 1mm
Segments	1
Dimensions	100 x 29 x 7,5 mm
Number of poles	5
Weight	0,06 kg
service voltage	24 VDC (±10%)
operating temperature	-30°C … +60°C
Noload current	50 mA / 50 mA / 50 mA / 70 mA
polarity protection	yes
protection class	IP67
Degree of protection	III safety extra-low voltage
Country of origin	DE
CTN	94054990
Remark	White may not be used with RGB colors at the same time.
Description	Signal light multicolored and pure white
