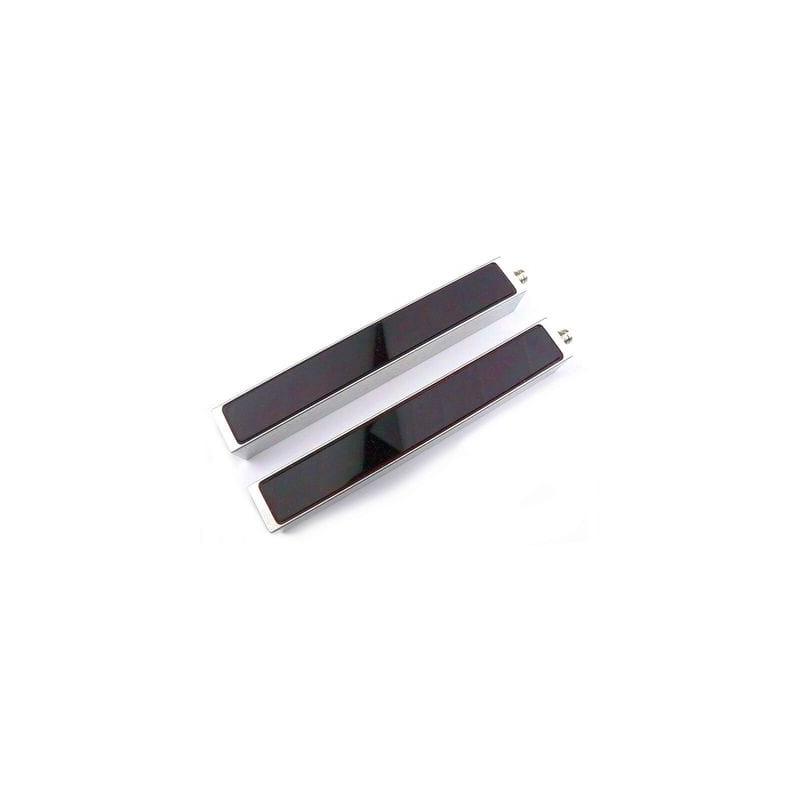

Light-curtains LG-100-PSK-ST3
| Category | Light barriers |
| Group | Light-curtains |
| Article number | 915.0100.001 |
| Name | LG-100-PSK-ST3 |
| Connection | Stecker M8 3-polig |
| Resolution | > 2mm |
| Evaluation | static |
| Sensitivity | adjustable |
| Ambient light immunity | 40 klx |
| casing material | Aluminum |
| Impulse stretching | adjustable to 150 ms |
| Sensing distance | 200 - 1000mm |
| Output | PNP NO |
| switching frequency | 1 kHz |
| Switching hysteresis | < 10 % |
| Emitted light | Infrared |
| Überwachungshöhe | 88 mm |
| Dimensions | 20mm x 20mm x 150mm |
| Number of poles | 3 |
| Weight | 0,2 kg |
| max. load current | 200 mA / short circuit proof |
| Reproducibility | < 1% |
| Voltage drop | < 1,5 V |
| Ambient temperature | - 10°C ... + 60°C |
| service voltage | 10 - 35 VDC |
| Noload current | < 70 mA |
| polarity protection | yes |
| protection class | IP 67 |
| Degree of protection | III safety extra-low voltage |
| Country of origin | DE |
| CTN | 85365019 |
| Remark | This is not a safety light curtain. |
