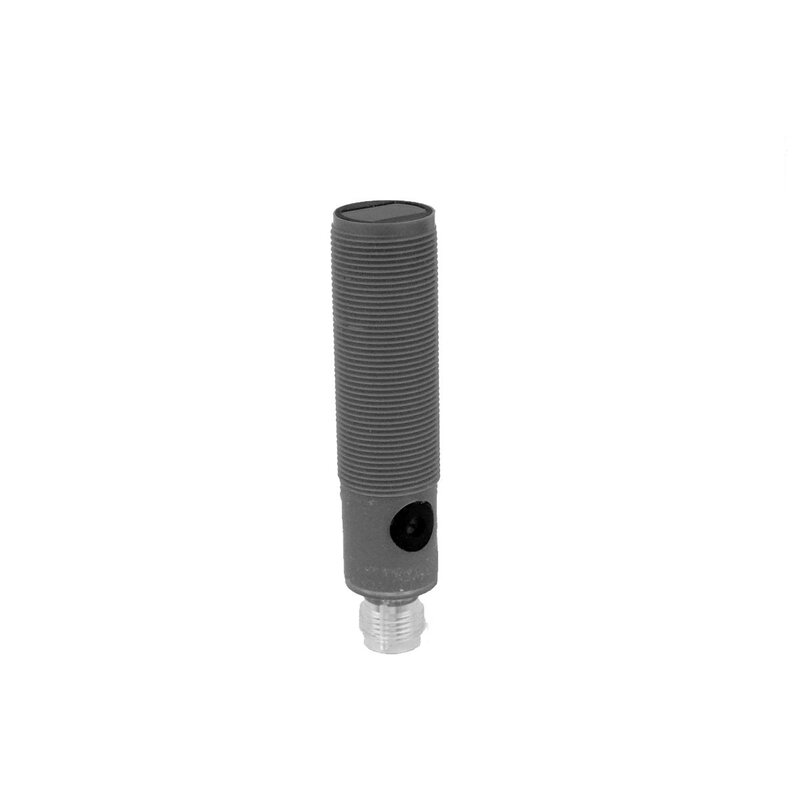

Light barrier OTVK-18-PAKI-ST4
| Category | Light barriers |
| Group | Diffuse-reflective sensor |
| Article number | 370.0018.600 |
| Name | OTVK-18-PAKI-ST4 |
| Connection | Connector M12 |
| Evaluation | static |
| Design | Thread design M18 |
| Besonderheiten | energetisch |
| Coding of | A |
| Ambient light immunity | 5 klx |
| casing material | PA 66 |
| Length | 78 mm |
| Sensing distance | 600 mm |
| Output | PNP NO+NC |
| switching frequency | 800 Hz |
| Switching hysteresis | < 10% |
| Emitted light | Infrared |
| Dimensions | M18 x 78 mm |
| Number of poles | 4 |
| max. load current | 100 mA / short circuit proof |
| Reproducibility | < 1% |
| Voltage drop | < 2,5V |
| Ambient temperature | - 25°C ... + 50°C |
| service voltage | 10 - 30 VDC |
| Noload current | < 35 mA |
| polarity protection | yes |
| protection class | IP 67 |
| Degree of protection | III safety extra-low voltage |
| Country of origin | DE |
| CTN | 85365019 |
| Description | Flush mounting is possible using the included mounting bracket. |
