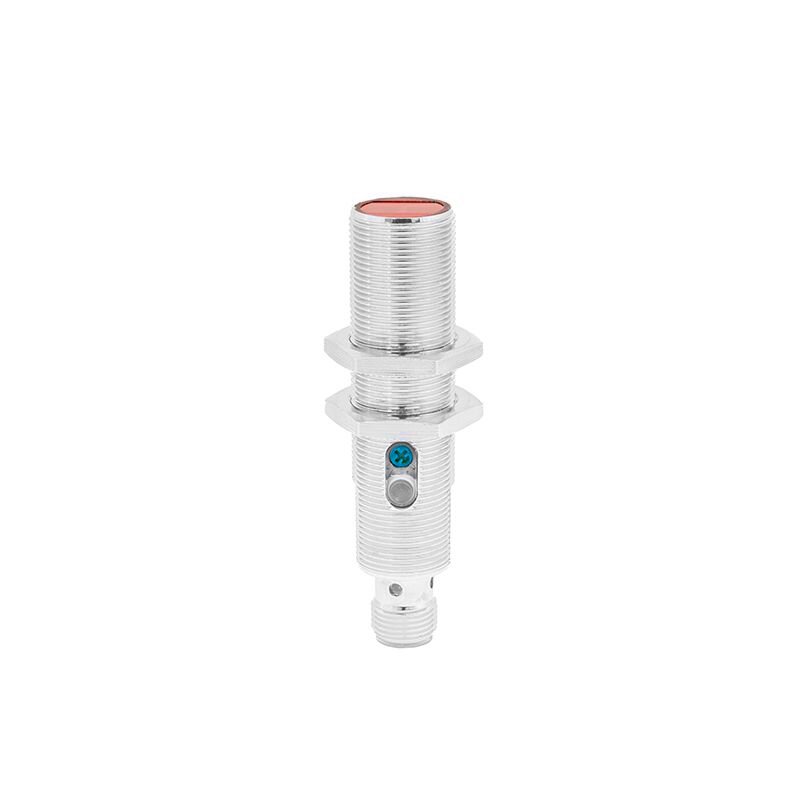

Light barrier ORVM-18-PAK-ST4

Category	Light barriers
Group	Retro-reflective sensor
Article number	371.0018.601
Name	ORVM-18-PAK-ST4
Connection	Connector M12
Evaluation	static
Design	Thread design M18
Coding of	A
Ambient light immunity	5 klx
casing material	Brass
Length	80 mm
Sensing distance	3000 mm
Output	PNP NO+NC
switching frequency	800 Hz
Switching hysteresis	< 10%
Emitted light	Red light
Dimensions	M18 x 78 mm
max. load current	200 mA / short circuit proof
Reproducibility	< 1%
Voltage drop	< 2,5V
Ambient temperature	- 25°C ... + 50°C
service voltage	10 - 30 VDC
Noload current	< 35 mA
polarity protection	yes
protection class	IP 67
Degree of protection	III safety extra-low voltage
Country of origin	DE
CTN	85365019
