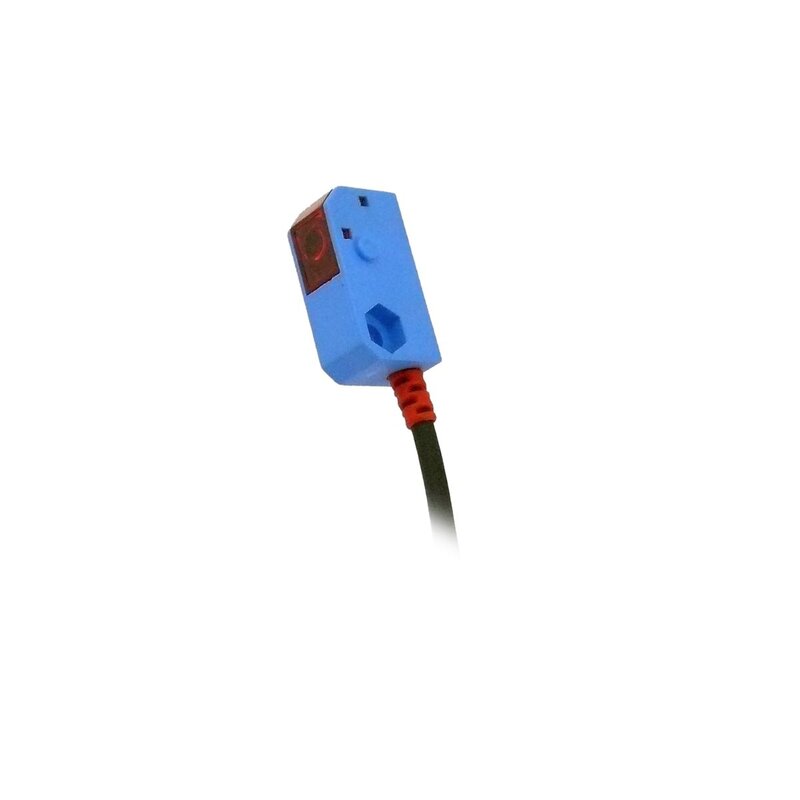

Trough-beam sensor OEV/OSV-2208-PSKI-KST3

Category	Light barriers
Group	Trough-beam sensor
Article number	370.2208.000
Name	OEV/OSV-2208-PSKI-KST3
Connection	Cableconnector M8
Evaluation	static
Design	Cuboid design
Ambient light immunity	3 klx
Material of case	PBT
Material of pane	PC
Sensing distance	1500 mm
Output	PNP NO
switching frequency	300 Hz
Switching hysteresis	< 15%
Emitted light	Infrared
Dimensions	22 x 12 x 8 mm
Number of poles	3
Weight	0,02 kg
max. load current	100 mA / short circuit proof
Reproducibility	< 1%
Voltage drop	< 1,5V
Ambient temperature	- 10°C ... + 45°C
service voltage	12 - 24 VDC
Noload current	< 15 mA
polarity protection	yes
protection class	IP 54
Degree of protection	III safety extra-low voltage
Country of origin	DE
CTN	85365019
