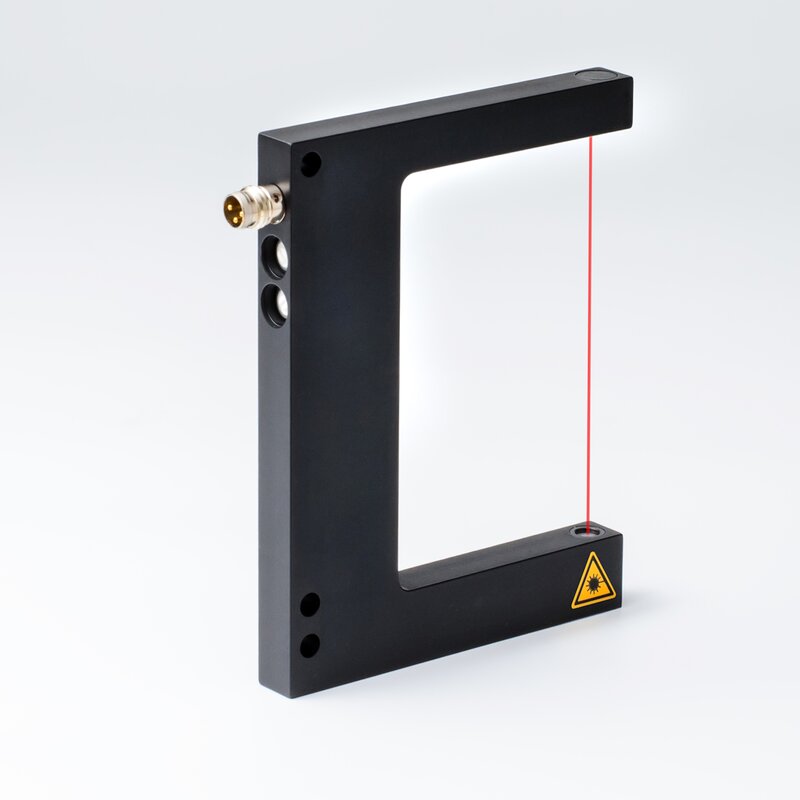

fork light barrier OGSL-220-POK-ST3

Category	Fork light barriers
Group	Standard
Article number	900.0023.212
Name	OGSL-220-POK-ST3
Connection	Connector M8
Resolution	0,03 mm
Evaluation	static
Sensitivity	adjustable
Ambient light immunity	50 klx
Operating principle	optical
Branch length inside	114 mm
Fork opening	220 mm
casing material	Aluminum black anodized
Insulation voltage endurance	500 V
Laser class	Laser class 2 – 650 nm
Output	PNP NC
switching frequency	10 kHz
Switching hysteresis	< 0,2 mm
Emitted light	Laser
Temperature drift	< 10 %
Dimensions	244 x 150 x 12 mm
Number of poles	3
Weight	0,3 kg
max. load current	200 mA / short circuit proof
Reproducibility	< 0,01 mm
Voltage drop	< 2,5 V
Ambient temperature	- 10°C ... + 60°C
service voltage	10 - 35 VDC
Noload current	< 35 mA
protection class	IP 67
Degree of protection	III safety extra-low voltage
Country of origin	DE
CTN	85365019
