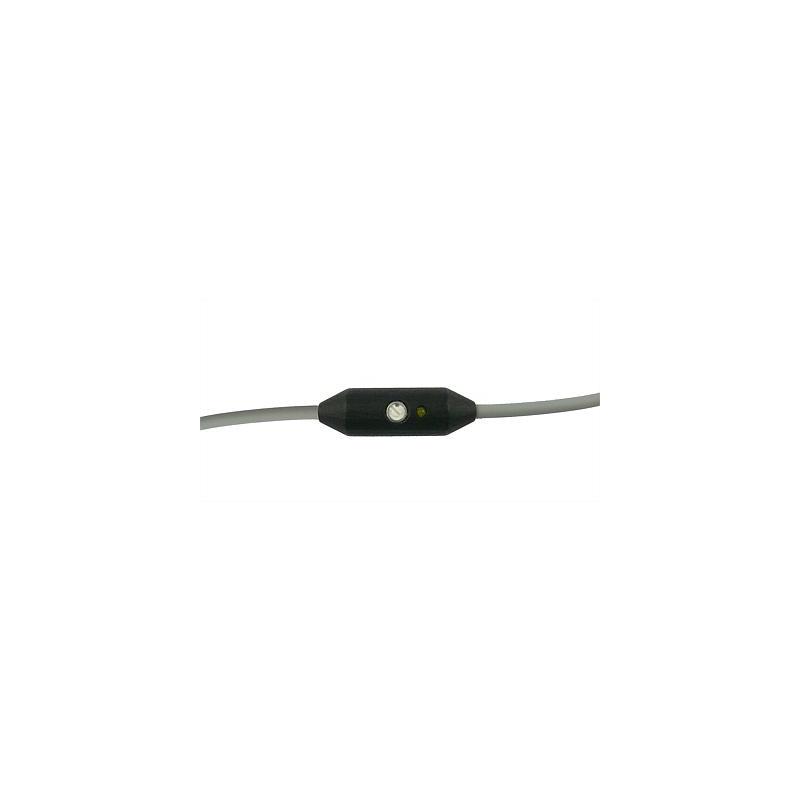

Signal converter SUK5-M12

Category	Connection technology
Group	Signal converter
Article number	710.0000.101
Name	SUK5-M12
Connection A	Coupling M12 straight
Connection B	Connector M12 straight
Coding of	A
Impulse stretching	0 – 150 ms einstellbar
Cable length	0,3 m
Cablejacket material	PUR
switching frequency	5kHz
Number of poles	3
Weight	0,020 kg
max load current	200mA
Ambient temperature	-25°C...+50°C
service voltage	10 – 35 VDC
Noload current	20mA
Insulation voltage endurance	yes
polarity protection	yes
protection class	IP 67 screwed
Degree of protection	III safety extra-low voltage
Country of origin	DE
CTN	85366990
Description	Die Signalumkehrstufe SUK5 dient zur Impulsverlängerung von PNP Signalen.
