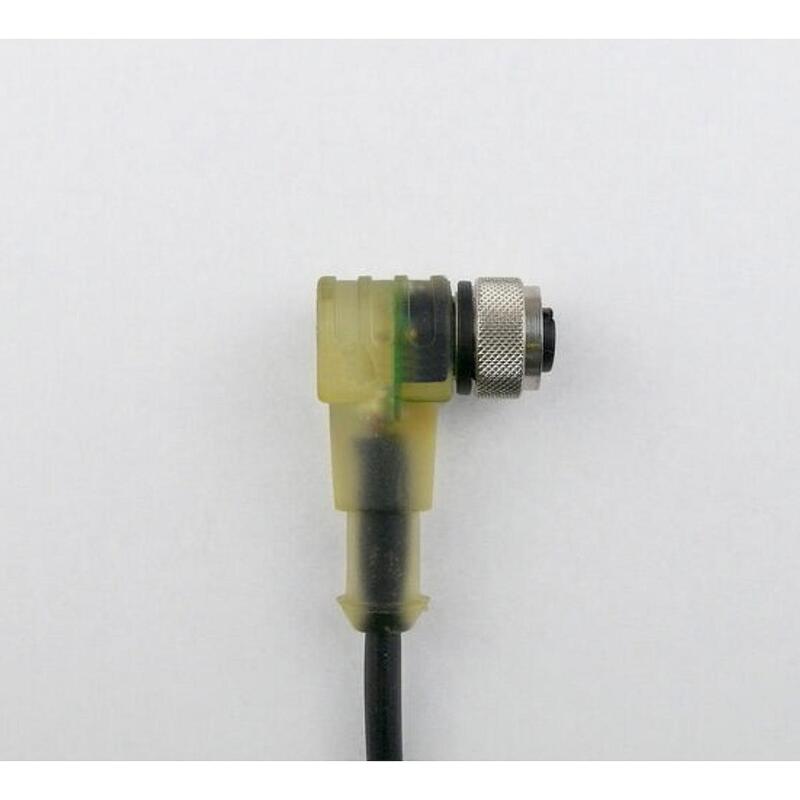

Connecting cable M12-5,0-W/4-LED2

Category	Connection technology
Group	Connecting cable
Article number	725.1255.313
Name	M12-5,0-W/4-LED2
Wire crosssection	4 x 0,25 mm²
Connection A	Coupling M12 angled
Connection B	open cable end
Outer diameter	4,50 mm
Rated voltage cable	250V
Bending radius repeated	10 x Ø-Leitung
Bending radius fixed	5 x Ø-Leitung
Coding of	A
Cable length	5,0 m
Cablejacket material	PUR
Temperature range repeated	-25°C...+80°C
Temperature range drag chain	-25°C…+60°C
Number of poles	4
Weight	0,210 kg
max load current	4A
Ambient temperature	-25°C...+80°C
protection class	IP 67 screwed
Degree of protection	III safety extra-low voltage
Description	The M12 sensor cable with an open end reliably connects the sensor to the controller.
