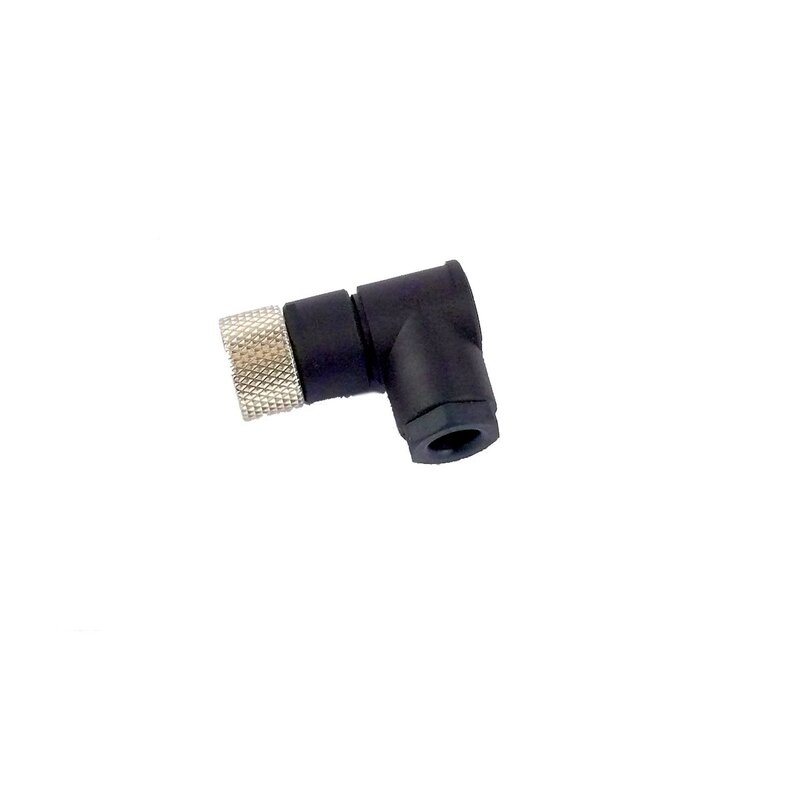

Field-wireable connector M8 KLW-8-4
| Category | Connection technology |
| Group | Field-wireable connector M8 |
| Article number | 725.0806.200 |
| Name | KLW-8-4 |
| Wire crosssection | max. 0,5 mm² |
| Connection A | Coupling M8 angled |
| Connection B | Soldering contact |
| Rated voltage cable | 30V |
| Number of poles | 4 |
| Weight | 0,020 kg |
| max load current | 4A |
| Ambient temperature | -40°C...+85°C |
| protection class | IP 67 screwed |
| Degree of protection | III safety extra-low voltage |
| CTN | 85366990 |
